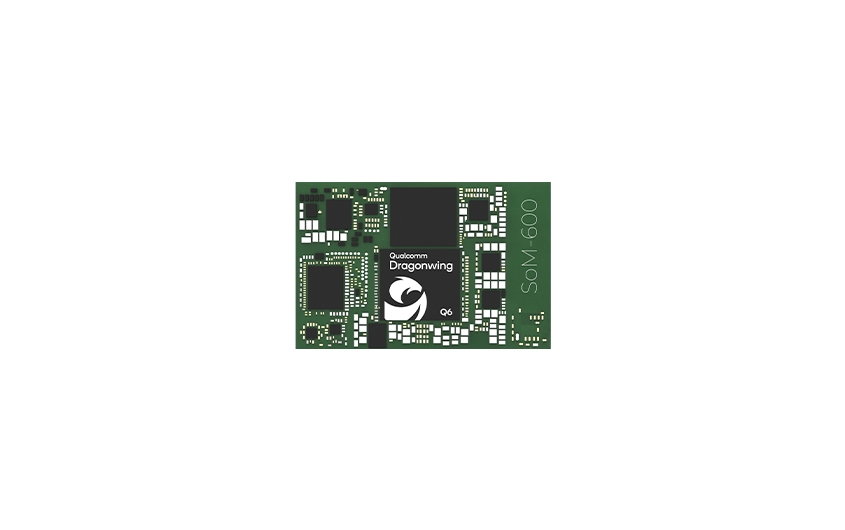

SoM-600
The Sysgration SoM-600 is a high-performance System on Module (SoM) built around the Qualcomm® Dragonwing QCS6490 SoC, offering outstanding computing power of up to 12 TOPS for AI workloads, along with exceptional power efficiency and processing performance. Engineered for next-generation AIoT applications, the SoM-600 is an ideal platform for developing handheld devices, industrial automation systems, service robots, rugged tablets, and edge computing solutions.
Designed to accelerate product development, the SoM-600 provides a rich set of hardware interfaces—including USB, PCIe, I2C, SPI, UART, and multiple display and camera inputs—enabling seamless integration with a wide range of peripherals. It supports rapid prototyping and functional validation by giving developers a ready-to-use computing core that reduces time-to-market.
- Powerful Processing: Qualcomm® Kryo™ 670 CPU, Adreno™ 642L GPU, Hexagon™ DSP, and Spectra™ 570L ISP
-
Flexible Memory: 6GB+128GB or 8GB+128GB configurations
-
High-Speed Connectivity: Wi-Fi 6E (802.11ax), 2x2 MIMO, Bluetooth 5.2
-
Rich Multimedia Support: 4K video encode/decode, FHD+@144FPS, 4K@60FPS display
-
Comprehensive I/O: USB 3.1, PCIe Gen3, MIPI CSI/DSI, SD card, GPIO, UART/I2C/SPI
| System | |
|---|---|
|
CPU |
Qualcomm® Dragonwing™ QCS6490 |
|
GPU |
Qualcomm® Adreno™ 643L |
|
AI |
12 INT8 TOPs |
| RAM & Storage | 8GB LPDDR5, 128GB eMMC |
| OS | Android 14, Yocto Linux |
| Interfaces | |
| Display | 1 x DSI 4-lane, support up to 1200 × 2520 @144 fps 1 x DP over Type C |
|
Camera |
5 x 4-lane MIPI CSI D-PHY |
|
Audio |
2 x Sound Wire 3 x DMIC Interfaces |
|
Video |
4K@60FPS for H.264/H.265/VP9 Decode 4K@30FPS for H.264/H.265 Encode |
|
USB |
1 x USB 3.1 with DP ; 1 x USB2.0 |
|
QUP |
QUPs, SSC QUPs, IIC HUBs |
|
SDIO |
1 x SDC for SD card |
| Debug | 1 x Debug UART |
| PCIE | 1 x PCIe Gen3 2-lane |
| Antenna | No Support |
| Wireless Connectivity | |
| Wi-Fi | No Wi-Fi built-in |
| Bluetooth | No Bluetooth built-in |
| Power | |
| DC Input | 3.4V ~ 4.5V, typ. 3.8V |
| Mechanical | |
|
Dimensions (W x D x H) |
47.0 mm × 35.0 mm × 3.5 mm |
| Form Factor | LGA |
| Weight | 13g |
| Environmental | |
| Operating Temperature | -20°C to +75°C |
| Storage Temperature | -40°C to +85°C |
All product specifications are subject to change without notice.
