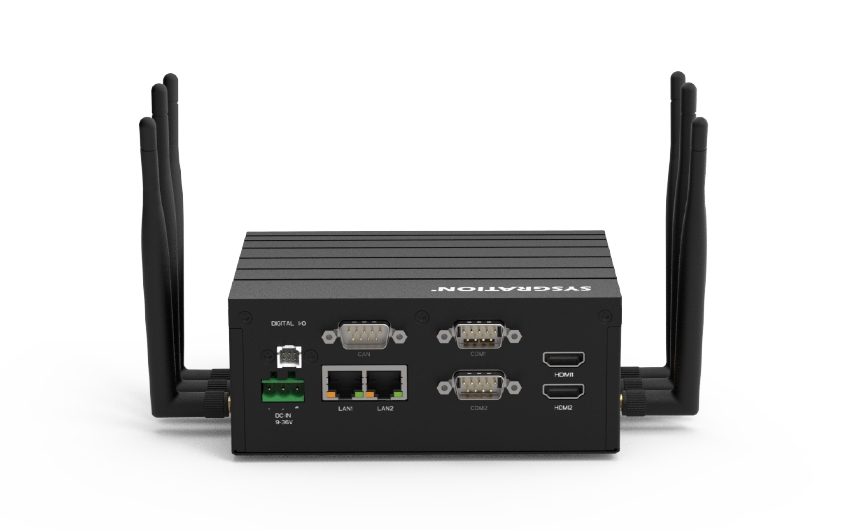

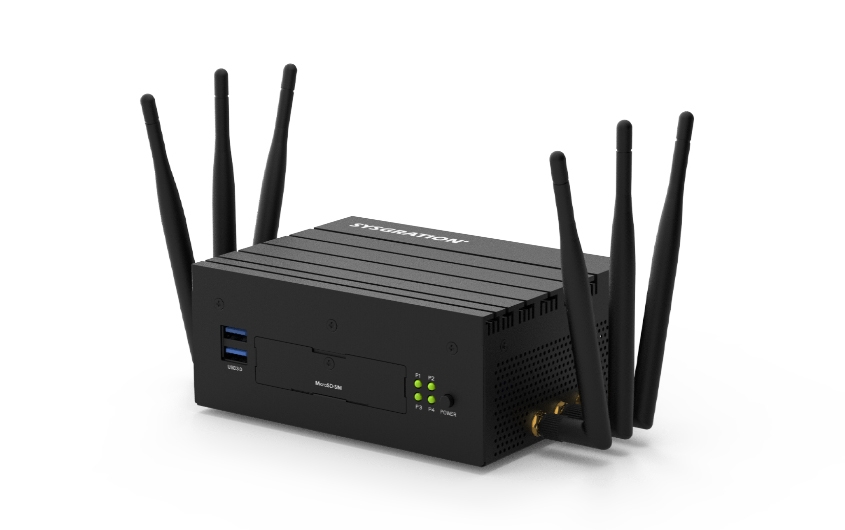

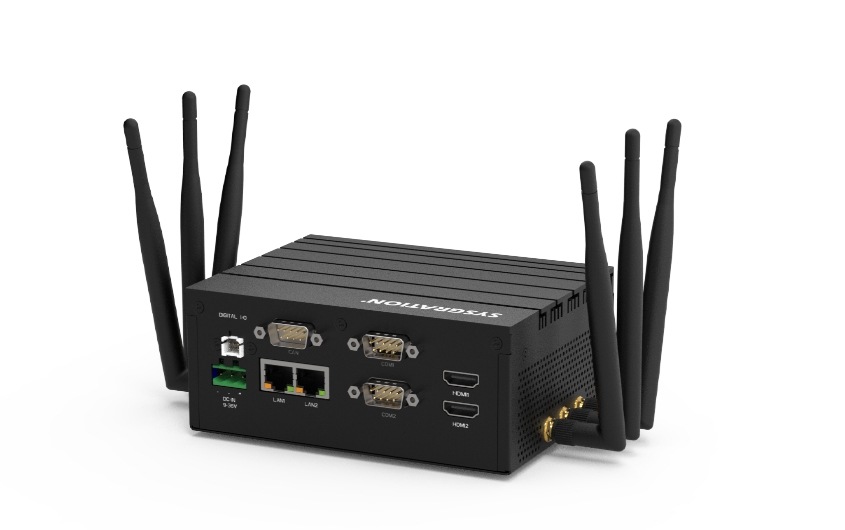

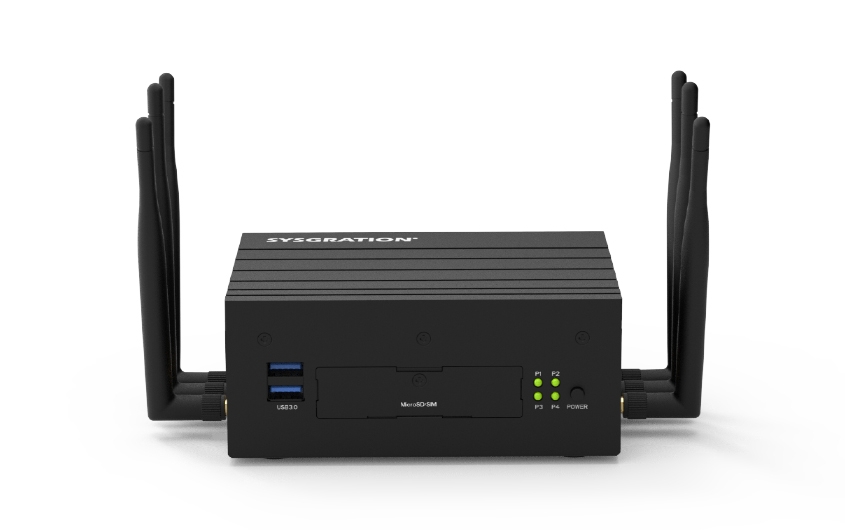

AIX-8000
The Qualcomm Dragonwing™ QCS8550 Edge AI Box reference design by Sysgration is revolutionizing edge computing. Equipped with a powerful 48 TOPS AI Engine, this unit delivers exceptional performance, enabling effortless management of complex tasks such as AI-driven decision-making and real-time data analysis. With its superior performance, connectivity, and AI capabilities, this terminal stands at the forefront of edge computing innovation. As industries increasingly adopt AI-driven solutions, the QCS8550 Edge AI Box promises to propel businesses towards unprecedented success.
-
Edge AI Performance
48 INT8 TOPs for real-time video analytics and smart surveillance
-
Advanced Compute Platform
Powered by Qualcomm® Dragonwing™ QCS8550 for efficient edge processing
- High-Quality Graphics
Adreno™ 740 GPU supports advanced visual AI tasks
-
Fast Memory & Storage
16GB LPDDR5x and 128GB UFS for smooth AI operation
-
Dual OS Support
Runs Android 13 and Yocto Linux for flexible deployment
|
System | |
|---|---|
|
CPU |
Qualcomm® Dragonwing™ QCS8550 |
|
GPU |
Qualcomm® Adreno™ 740
|
|
AI |
48 INT8 TOPs |
| RAM | 16GB LPDDR5x |
| Storage | 128GB UFS |
| OS | Android 13, Yocto Linux |
|
Interfaces | |
|
Button |
1 x power with LED, 1x reset |
|
HDMI |
2 x HDMI 4K@30fps |
| USB | 2 x USB 3.0 Type-A |
| Ethernet | 2 x 10/100/1000Mbps Ethernet |
| Serial Port | 2 x COM RS-232/RS-422/RS-485 |
| CAN Bus | 2 x CAN FD and 2.0B |
| LED Indicator | 4 x Programmable LEDs |
| Digital I/O | 4 |
| Audio | N/A |
|
Extension Slots | |
|
M.2 |
1 x M.2 2242/52/80 Key B socket 1 x M.2 2230 Key E / 2280 Key B Socket (Mutually Exclusive) |
| SD Card Slot | 1 x MicroSD Card Slot |
| SIM Slot | 1 x NanoSIM Slot |
|
Wireless Connectivity | |
|
Wi-Fi/Bluetooth |
M.2 Wi-Fi 7/Bluetooth Combo Module (optional) IEEE 802.11be/ax/ac/a/b/g/n, Bluetooth v5.4 |
|
Cellular |
M.2 5G module (optional) |
|
Power Supply | |
|
DC Input |
9V ~ 36V, 3-pole Terminal Block |
| AC Input | 60W power adapter (optional) |
|
Mechanical | |
|
Dimensions (W x D x H) |
180mm x 120mm x 71mm |
| Weight | 1.725 KG |
| Mounting | Wall mount, VESA DIN rail (optional) |
| Antenna Connector | 6 x SMA connector (optional) |
|
Environmental | |
|
Operating Temperature |
-20°C to 60°C |
| Operating Humidity | 5%~90% @40°C (non-condensing) |
| Storage Temperature | -40°C to +85°C |
| Regularity | CE & FCC class B |
All product specifications are subject to change without notice.
