SoM-600

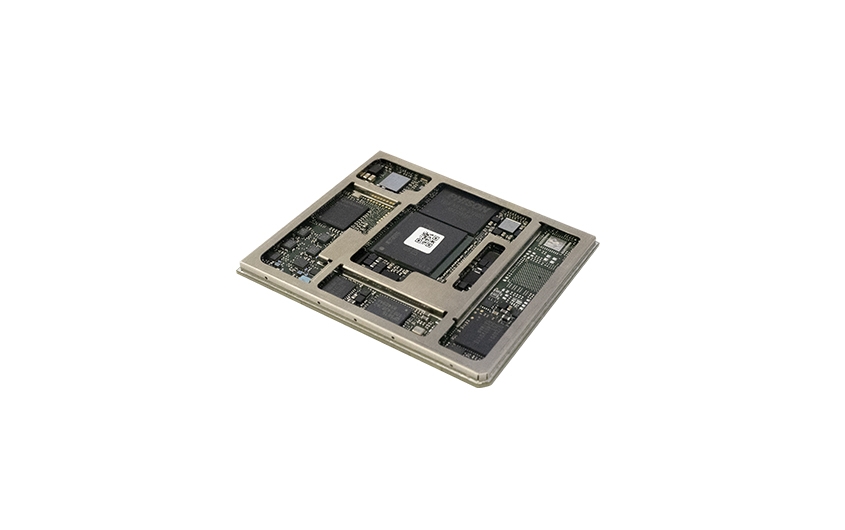

The Sysgration SoM-600 is a high-performance System on ModuleThe Sysgration SoM-600 is a high-performance System on Module(SoM) built around the Qualcomm® Dragonwing QCS6490 SoC, offeringoutstanding computing power of up to 12 TOPS for AI workloads, alongwith exceptional power efficiency and processing performance. Engineeredfor next-generation AIoT applications, the SoM-600 is an ideal platformfor developing handheld devices, industrial automation systems, servicerobots, rugged tablets, and edge computing solutions.



Designed to accelerate product development, the SoM-600 provides aDesigned to accelerate product development, the SoM-600 provides arich set of hardware interfaces—including USB, PCIe, I2C, SPI, UART, andmultiple display and camera inputs—enabling seamless integration witha wide range of peripherals. It supports rapid prototyping and functionalvalidation by giving developers a ready-to-use computing core thatreduces time-to-market.





Datasheet(PDF)

    • Powerful Processing: Qualcomm® Kryo™ 670 CPU, Adreno™ 642L GPU, Hexagon™ DSP, and Spectra™ 570L ISP

    • Flexible Memory: 6GB+128GB or 8GB+128GB configurations

    • High-Speed Connectivity: Wi-Fi 6E (802.11ax), 2x2 MIMO, Bluetooth 5.2

    • Rich Multimedia Support: 4K video encode/decode, FHD+@144FPS, 4K@60FPS display

    • Comprehensive I/O: USB 3.1, PCIe Gen3, MIPI CSI/DSI, SD card, GPIO, UART/I2C/SPI

Platform

Qualcomm® QCS6490 Qualcomm® Kryo CPU 670

Qualcomm® Adreno GPU 642L, Adreno 633 VPU, Adreno DPU 1075 Qualcomm® ComputeQualcomm® Adreno GPU 642L, Adreno 633 VPU, Adreno DPU 1075 Qualcomm® ComputeHexagon DSP with dual HVX, Hexagon Co-processor (Hexagon CP) 2.0 and HexagonTensor Accelerator Qualcomm® Spectra 570L image processing

Memory

8GB+128GB

AI Performance

 12 TOPS
Video Encode 4K@30FPS for H.264/H.265
Video Decode 4K@60FPS for H.264/H.265/VP9
Display interfaces

1x MIPI-DSI 4-lane ; FHD+ (1080x2520) 8L@144FPS ;

4K@60FPS display support over DisplayPort
Camera Interfaces

5 x 4-lane MIPI CSI D-PHY

(2 of them compatible with 3-trio MIPI CSI C-PHY up to 48M camera)

Peripherals

1 x USB 3.1 with DP, 1 x USB 2.0 (Host Only), 1 x PCIe Gen3 2-lane, 1 x PCIe Gen3 1-lane,

2 x SoundWire, 1 x SDC for SD card, 3 x DMIC Interfaces, GPIOs, QUPs (UART/I2C/SPI)

Operating Environment

Operation Temperature: -25°C ~ +75°C

Operation Humidity: 5%~95%, non-condensing

Mounting

 Board to Board connector

Voltage

 3.4V~4.5V, Typ. 3.8V

Dimensions

 50mm x 33mm

OS Support

 Android 14, Yocto Linux

All product specifications are subject to change without notice.
