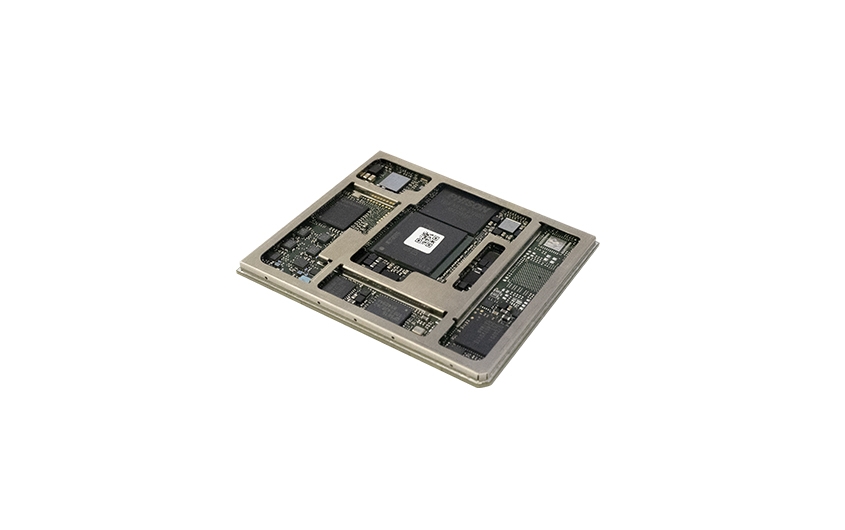

SoM-800

The Sysgration SoM-800 is a high-performance System on Module (SoM)The Sysgration SoM-800 is a high-performance System on Module (SoM)built around the Qualcomm® QCS8550 SoC, delivering up to 48 TOPS ofAI computing power. Designed for power-efficient edge AI applications,it is ideal for industrial robotics, service automation, advanced handhelds,rugged tablets, and intelligent vision systems.



Leveraging the advanced 4nm architecture of the QCS8550, the SoM-800Leveraging the advanced 4nm architecture of the QCS8550, the SoM-800offers exceptional processing capability, low power consumption,and seamless scalability for AIoT deployments. The SoM-800 providesdevelopers with a powerful and flexible computing core to accelerateproduct development, simplify system integration, and bring advanced AIapplications to market faster.





Datasheet(PDF)

    • Flagship Performance: Qualcomm® Kryo™ CPU, Adreno™ 740 GPU, and Spectra™ ISP for advanced compute and imaging

    • High-Resolution Video: Supports 8K30 video encoding and 8K60/4K240 decoding with AV1 support

    • Flexible Display & Cameray: Dual DSI (up to 4K@120Hz) and DP1.4; supports 5 concurrent cameras and up to 3x 36MP ISPs

    • Expandable Interfaces: PCIe Gen4 and Gen3, multiple MIPI CSI lanes, and DP over USB Type-C

    • Robust for Industrial Use: Wide operating temperature (-25°C to +75°C), LGA form factor, and Android 13 support

Platform

Qualcomm® QCS8550

Kryo™ CPU

Adreno™ 740 GPU

Spectra™ ISP

Memory

12GB + 128GB

AI Performance

 48 TOPS
Video Encode 4K120/8K30 Encode
Video Decode 4K240/8K60 Decode, AV1 decode
Display interfaces 2 x MIPI-DSI 4Lane; support up to 4K@120Hz ; 1 x DP V1.4 over Type-C
Camera Interfaces

8 x MIPI-CSI

4 x CSI D-PHY-1.2 4-lane

2 x CSI D-PHY-1.2 2-lane

2 x CSI C-PHY-2.0 3-trio compatible with D-PHY 4-lane

5 x concurrent (3 IFEs + 2 IFE-lites)

HW sHDR; AON

PCIe

 1 x 2-lane Gen4 ; 1 x 2-lane Gen3

I/O

1 x USB 3.1 with 1 x embedded USB 2.0 (eUSB 2.0) ;

2 x I3C ; 10 x I2C ; 4 x SPI ; 2 x I2S ; GPIOs
Audio Sound Wires ; Digital MICs

Operating Environment

Operation Temperature: -25°C ~ +75°C

Operation Humidity: 5%~95%, non-condensing

Mounting

 Board to board connector
Voltage 3.4V~4.5V, Typ. 3.8V
Dimensions 50 x 33 mm
OS Support Android 14, Yocto Linux

All product specifications are subject to change without notice.
