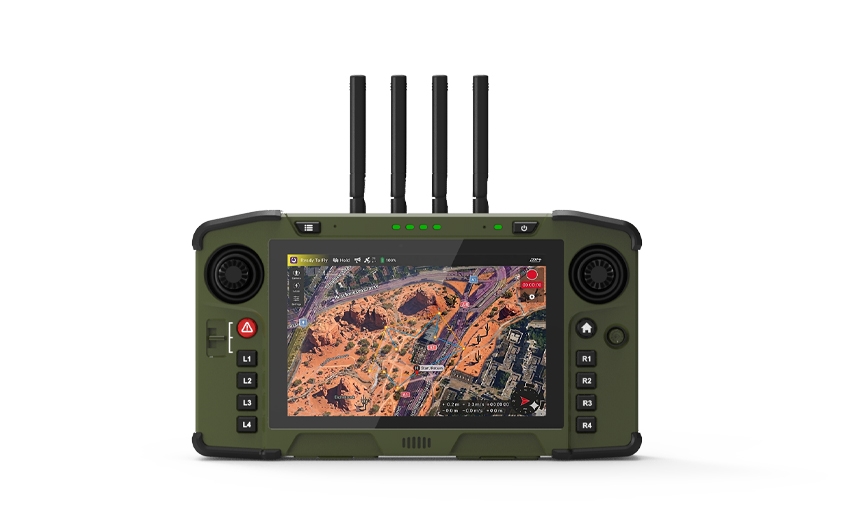

GCS-6070 - Ground Control Station
The GCS is a ruggedized, MIL-STD-810H and IP65-rated device featuring a 7-inch, 1500-nit sunlight-readable display and a Qualcomm QCS6690 processor that delivers 6 TOPS of AI performance. It offers comprehensive connectivity, including Wi-Fi 7, Bluetooth 5.4, SRM radio support, and optional 4G/5G/GNSS. Additionally, its hot-swappable dual battery architecture ensures continuous, uninterrupted operation during extended missions.
-
-
Optimized Performance & Power Efficiency
Powered by Qualcomm Dragonwing QCS6690 with up to 6 TOPS AI performance, enabling responsive UI, real-time video processing, and energy-efficient operation.
-
Sunlight-Readable 7” Display
1920 × 1200 (WUXGA) resolution with up to 1500 nits brightness for clear visibility in outdoor environments.
- Comprehensive Connectivity
Integrated Wi-Fi 7 and Bluetooth 5.4, with support for SRM radio modules; optional 4G/5G and GNSS for wide-area communication and positioning.
-
Ruggedized for Field Use
Designed to meet MIL-STD-810H environmental standards and IP65 ingress protection for reliable operation in harsh conditions.
-

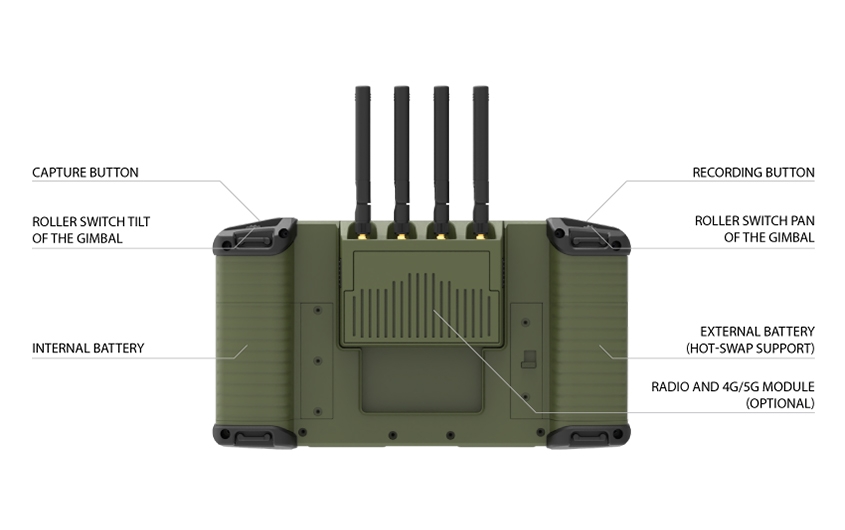

Hot-Swappable Dual Batteries
Dual battery architecture with hot-swap capability to ensure continuous operation during extended missions without Specification system downtime.
-
|
System | |
|---|---|
|
CPU |
Qualcomm® Dragonwing™ QCS6690, 8-core Kryo™ @ Up to 2.9 GHz |
|
AI |
6 INT8 TOPS |
|
RAM & Storage |
8GB LPDDR5x, 128GB UFS |
| Storage Expansion | Micro SD/SDXC card slot, support up to 2TB |
| OS | Android 16 |
|
Display | |
|
Size |
7-inch |
|
Resolution |
1920 × 1200 |
| Brightness | 1500 nits, Sunlight readable, elimination of sunglasses polarization, UV resistance |
|
Touch Screen | |
|
Touch Screen |
Capacitive multi-touch: support finger, glove, rain and stylus mode operation |
|

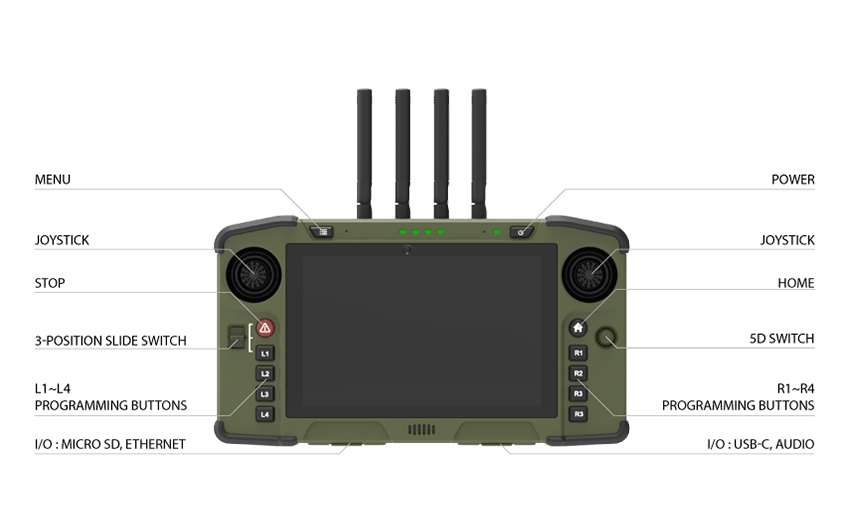

Control | |
|
Button |
Power button × 1, Joystick × 2, Home button × 1, Stop button × 1, |
|
Connections | |
|
USB |
USB-C × 2 (1 for Power charging & data transfer( w/ DP) ; 1 for data transfer only) |
| Ethernet |
RJ45 × 1 |
| Audio Jack | 3.5 mm × 1 |
| Expansion port | Support Radio module and 4G/5G module expansion |
|
Wireless Connectivity | |
|
Wi-Fi |
Wi-Fi 7, Wi-Fi 6E, Wi-Fi 6 (802.11ax), 802.11ac wave 2, 802.11a/b/g, 802.11n |
| Bluetooth |
Bluetooth 5.4 |
| Cellular |
5G NR, 5G RedCap, 4G/LTE module +Nano SIM slot x1(Optional) |
| Radio |
Support Microhard, Persistent Systems, Doodle Labs, Domo Tactical and Silvus Radio modules (Optional) |
|
Radio Protocol | |
|
Radio Protocol |
MAVLink, SRT/RTSP |
| GNSS | |
| GNSS | 3 Constellation GNSS (GPS, Galileo, Glonass), stand alone module |
| Power | |
| Charging | Through USB Type-C Connector, support 65W PD power adapter |
| Software | |
| Software | QGroundControl |
| Mechanical | |
| Dimensions (W x D x H) | 268.0 x 149.0 x 31.0/53.8 mm |
| Weight | 1920 × 1200 |
| Audio Jack | 3.5 mm × 1 |
| Expansion port | Support Radio module and 4G/5G module expansion |
| Environmental | |
| Operating Temperature | - 20°C to + 55°C |
| Storage Temperature | - 40°C ~ 70°C (w/o battery @-40°C) |
| Reliability | MIL-STD-810H, 5 ft drop to concrete |
| IP Rating | |
| IP Rating | IP65 |
| Security/Encryption | |
| Security/Encryption | AES-128 / AES-256 (Hardware Accelerated) |
| Compliance | |
| Compliance | NDAA Compliant; TAA Compliant; FIPS 140-3 (Available upon request) |
| Certificate | |
| Certificate | CE, FCC |
All product specifications are subject to change without notice.
