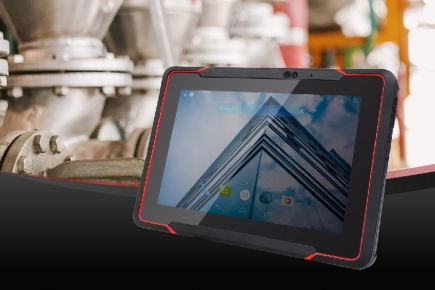

ITP-1, Industrial Tablet PC

Ready for Android, We have a Solution for Telemetry and Field Worker. Sysgration has introduced Rugged Industrial Tablet PC, ITP-1 which designed for a variety of demanding environments and applications



glove touch  multi mode  multi mode



Datasheet(PDF)

  • Qualcomm® Snapdragon™ 660 Octa-core 2.2 GHz processor
  • 1,000 nits; 1920 x 1200 Gorilla multi-touch display
  • Support glove/rain mode
  • 4G LTE, WiFi 802.11ac, BT5.0 LE, GNSS (Dead-Reckoning optional)
  • 9,060mAh (min. 8,680mAh) Hot swappable battery
  • IP65, Operating Temp. -20°C ~ 60°C
  • Two Expansion options (for MSR/SCR/UHF RFID)
  • Android™ 10/11

Display & Touch Screen

Panel Size

10.1 TFT LCD WUXGA (1920 x 1200), 1,000 nits

Touch Panel

10-Point Capacitive Multi-Touch with Gorilla Glass, Sunlight readable, Glove/Rain Mode

Stylus

Support 2mm Hard Tip Stylus

Motherboard

CPU

Qualcomm® Snapdragon™ Octa-Core 660 processor

OS

Android 10/11

RAM / Flash

4GB LPDDR4 / 64GB eMMC

Storage Expansion

microSD up to 64GB

System

Camera

Front: 5MP; Rear: 13MP; Auto-Focus, Flash LED

1D/2D BCR

Zebra SE4770 (Optional)

NFC

13.56MHz, ISO14443 A/B, ISO 15693, MiFare, Felica

Battery

9,060mAh (min. 8,680mAh) Hot Swap Battery, Fast Charging

WWAN

3G/4G LTE (CAT. 6)(Optional)

SIM

Nano SIM x2

GNSS

u-blox Neo-M8N (Neo-M8U optional, with Dead-Reckoning)

support GPS/Glonass/Gallileo/Beidou/QZSS/SBAS

WLAN

Wi-Fi 802.11a/b/g/n/ac

Bluetooth

Bluetooth 5.0 Class 2, BLE

Speaker

Stereo

Microphone

Front & Rear, with Acoustic Noise Cancellation

Sensor

Ambient Light Sensor, Proximity, Accelerometer, Gyroscope & Magnetometer Sensor

I/O

USB 3.1 Type-C (Alt Mode/OTG) x1, USB 2.0 Type A x2

Combo Audio Jack (Headphone & Microphone) x1

micro SD x1

RF Pass-Through x3 for WWAN/WLAN/GNSS

Expansion I/O

Docking Connector x1; Expansion Connector x2

Environment

Temperature & Humidity

Operating Temp.: -20°C ~ 60°C; Storage Temp.: -30°C ~ 70°C

Dust/Water Proof

IP65 (IEC60529)

Drop

4 ft. on concrete, 5 ft. on plywood

Certification

Safety

UL/CSA62368-1, 2nd Ed.; IEC/EN62368-1

SAR

FCC 47 CFR2.1093; EN62311, EN62209-2; EN62209-1:201

EMC

FCC Part 15B, Class B; CAN/CSA ICES-003, Class B; EN55032, Class B;

EN301-489-1/-13/-17/-24/-52; EN61000-3-2; EN61000-3-3; EN55035

RF

FCC Part 15C, 15E, 22H, 24E, 27L; CE RED EN 300 328, EN 301 893, EN 300 440, EN 303 413, EN 301 908-1/-2/-13, EN 301 511

Environment

RoHS, WEEE

Dimension & Weight

Dimension

(W x H x D)

280.0 x 195.0 x 18.8mm

Weight

1.1kg

Accessory

Vehicle Docking

USB 3.1 x2, GbE x1, RS-232 x1; (Vibration 5M3)

Office Docking

USB 3.1 x2, GbE x1, RS-232 x1, HDMI x1, Line-out, Mic-in,

Kensington Lock, Battery Charging Bay x1

Expansion Module

Ethernet RJ-45, UART RS-232/422/485, UHF RFID, 3D ToF Camera, MSR,

Smart Card Reader, Finger Print Scanner
